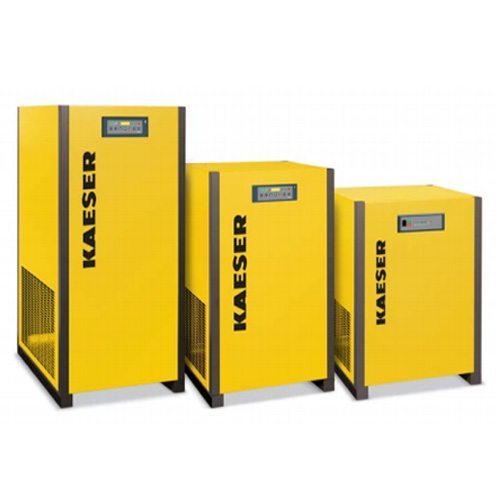

Cooling Unit
Kaeser’s HT Series refrigerated dryers are specifically designed for high-pressure applications, such as laser cutting, leak testing, and PET bottling. High-quality components and excellent manufacturing ensure your processes will enjoy premium moisture protection for the long-term. Reliably dry compressed air from 130 scfm to 3,000 scfm For working pressures up to 725 psig For ambient temperatures up to 110°F
Additional information
| Product Type | Dryer |
|---|---|
| Rated CFM | 10-330 CFM |
Features
- 45° to 50°F outlet air temperature
- 3 micron moisture separator
- 10 to 330 cfm
- On/Off switch
Tool Brochure
.
Specifications
| Model | Rated Capacity (scfm) | Power Supply (V / Ph / Hz) | Inlet/Outlet Connection (in) | Dimensions (in) | Weight (lb) |
|---|---|---|---|---|---|
| KCA 10 | 10 | 115 / 1 / 60 | ½” NPT(M) | 20 x 21 x 26 | 86 |
| KCA 15 | 15 | 115 / 1 / 60 | ½” NPT(M) | 20 x 21 x 26 | 90 |
| KCA 25 | 25 | 115 / 1 / 60 | ½” NPT(M) | 20 x 21 x 26 | 95 |
| KCA 35 | 35 | 115 / 1 / 60 | ¾” NPT(M) | 20 x 21 x 26 | 106 |
| KCA 50 | 50 | 100-115 / 1 / 50-60 | 1 NPT(M) | 28 x 20 x 38 | 251 |
| KCA 70 | 70 | 100-115 / 1 / 50-60 | 1 NPT(M) | 28 x 20 x 38 | 273 |
| KCA 100 | 100 | 208-230 / 3 / 60 | 1½ NPT(M) | 34 x 32 x 39 | 425 |
| KCA 160 | 160 | 208-230 / 3 / 60 | 1½ NPT(M) | 34 x 32 x 39 | 463 |
| KCA 200 | 200 | 208-230 / 3 / 60 | 2½ NPT(M) | 35 x 42 x 58 | 684 |
| KCA 240 | 240 | 208-230 / 3 / 60 | 2½ NPT(M) | 35 x 42 x 58 | 691 |
| KCA 330 | 330 | 208-230 / 3 / 60 | 2½ NPT(M) | 35 x 42 x 58 | 734 |
