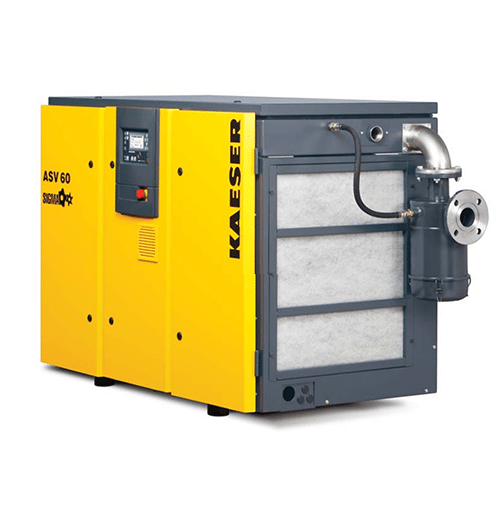

Rotary Screw Vacuum
Kaeser’s Rotary Screw Vacuum Packages feature a Sigma Profile™ airend specifically designed for vacuum applications such as dust collection, packaging, bottle and tube filling, drying, degassing, and filtration. Their rugged design combines ease of use with exceptional reliability and simple maintenance.
Additional information
| Product Type | Rotary Vacuum |
|---|
Features
- Sigma Profile™ airend
- Belt drive with automatic tensioning
- Premium efficiency drive motor
- Gas ballast system
- Vacuum filter
- Air/coolant system
- Intelligent control and protection
- Fluid separation system
Product Brochure
SEE PDFSpecifications
| Model | Capacity (acfm) | Max Vacuum (%) | Rated Power (hp) | Power Supply | Dimensions (in) | Vacuum Connection (in) | Outlet Conecction (in) |
|---|---|---|---|---|---|---|---|
| ASV 40 | 168 | 99 | 10 | 55 7/8 x 35¼ x 42¾ | 2½ Flg | 1½ NPT | 1014 |
| ASV 60 | 242 | 99 | 15 | 55 7/8 x 35¼ x 42¾ | 2½ Flg | 1½ NPT | 1036 |
